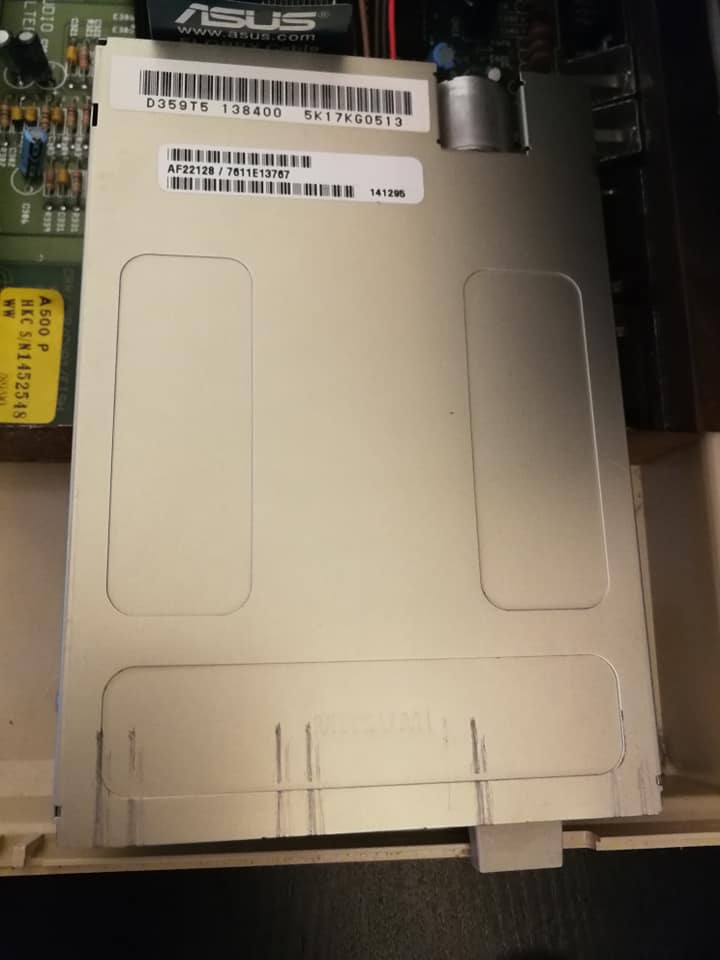

Panasonic JU-257A516P modified to work properly with the Amiga

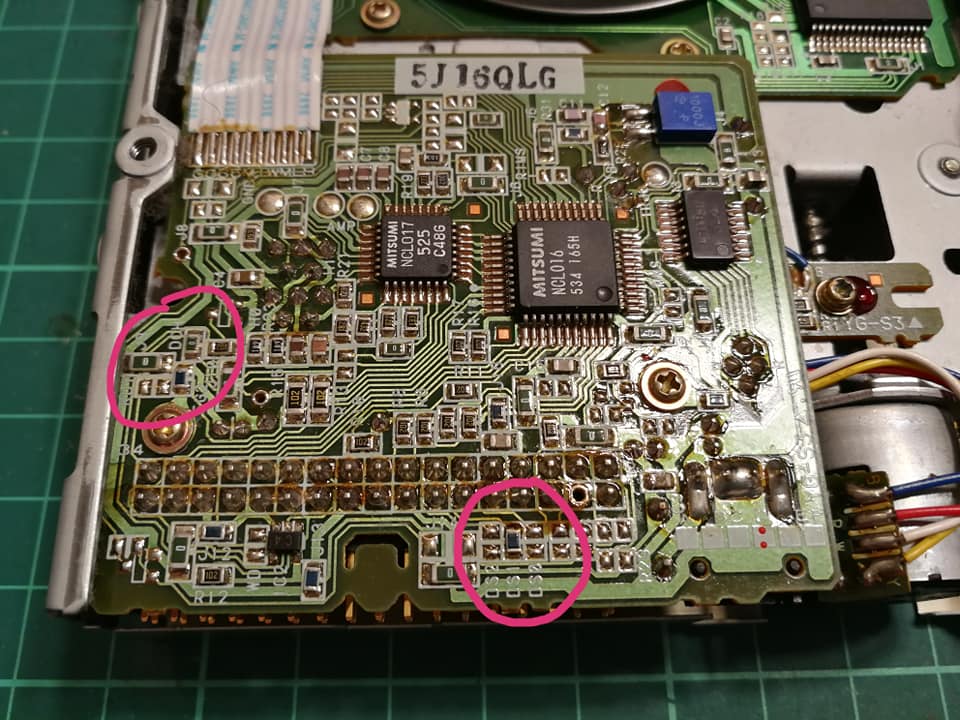

Before

Move the 0 ohm resistor from DCH to RDY, adjust the 0 ohm resistor from DS1 to DS0.

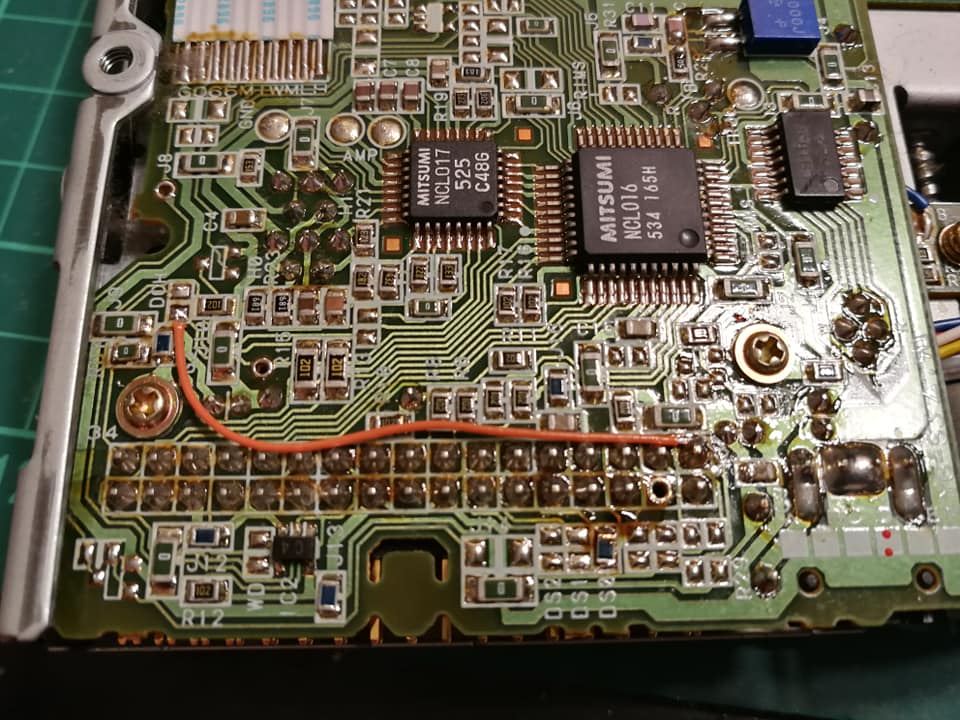

Solder a wire between the DHC pad closer to the RDY jumper and the data connector's pin 2.

Researched by Anssi Luukkonen
