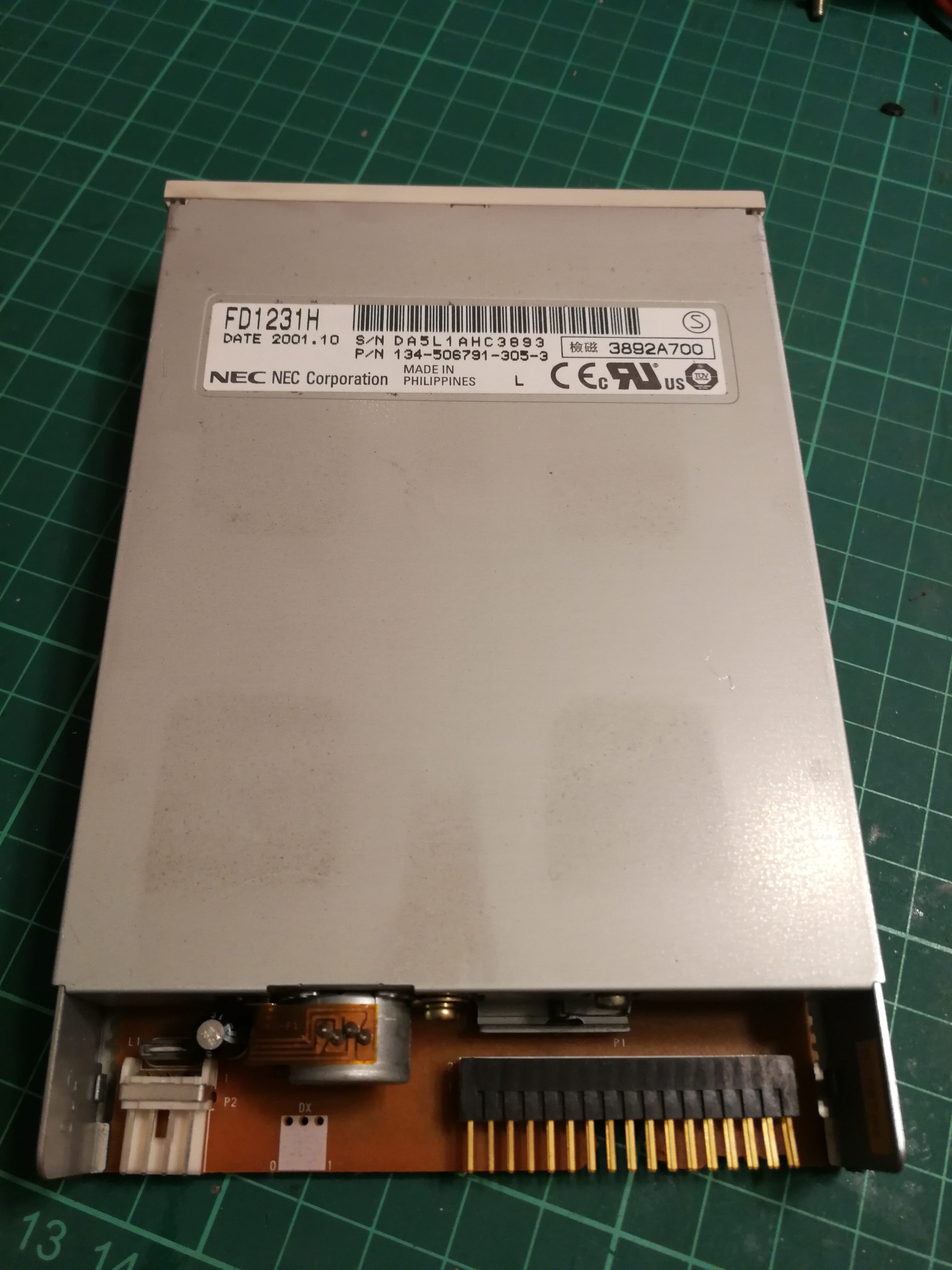

Converting NEC FD1231H to Amiga

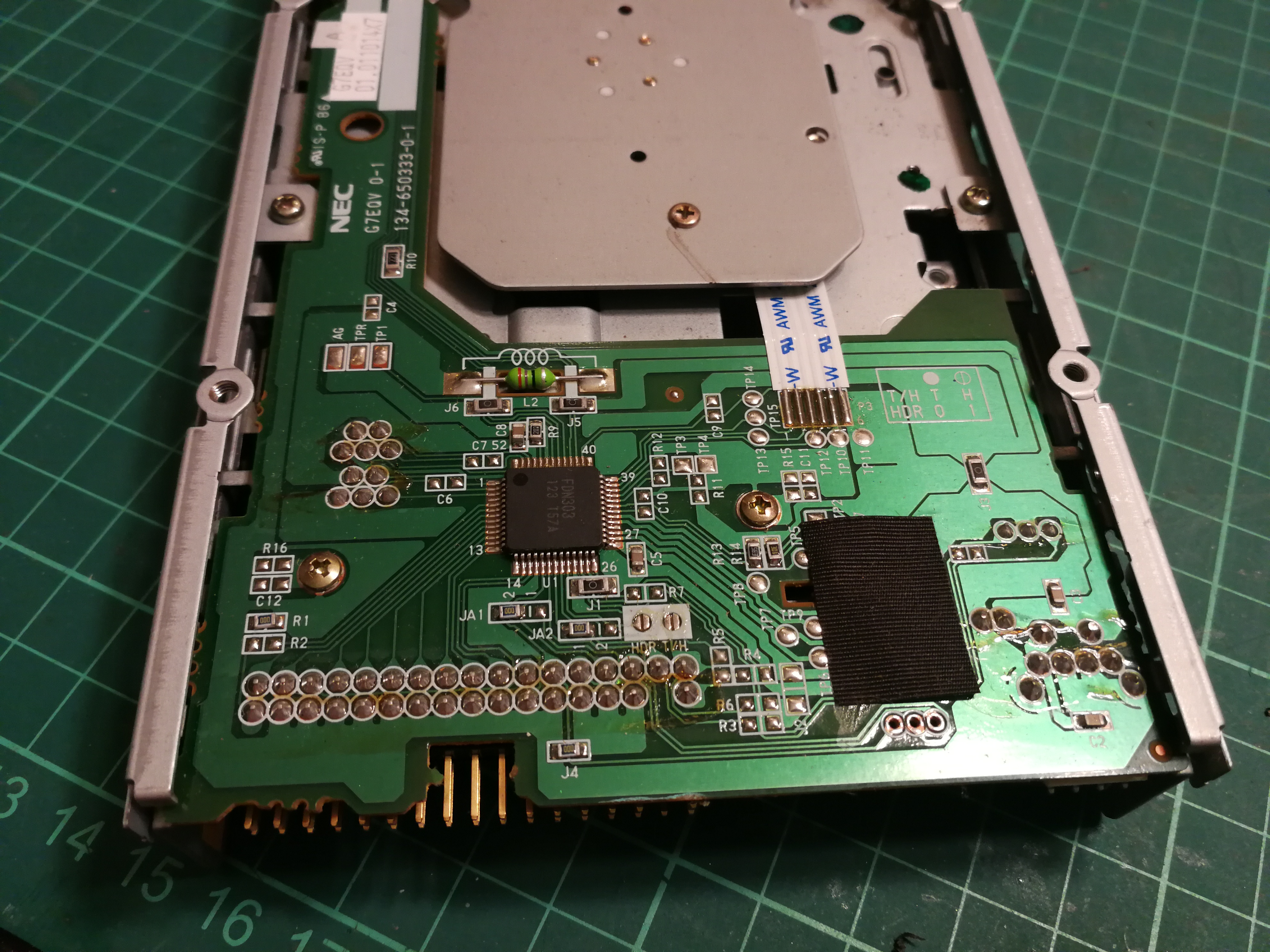

FD1231H FD1231H

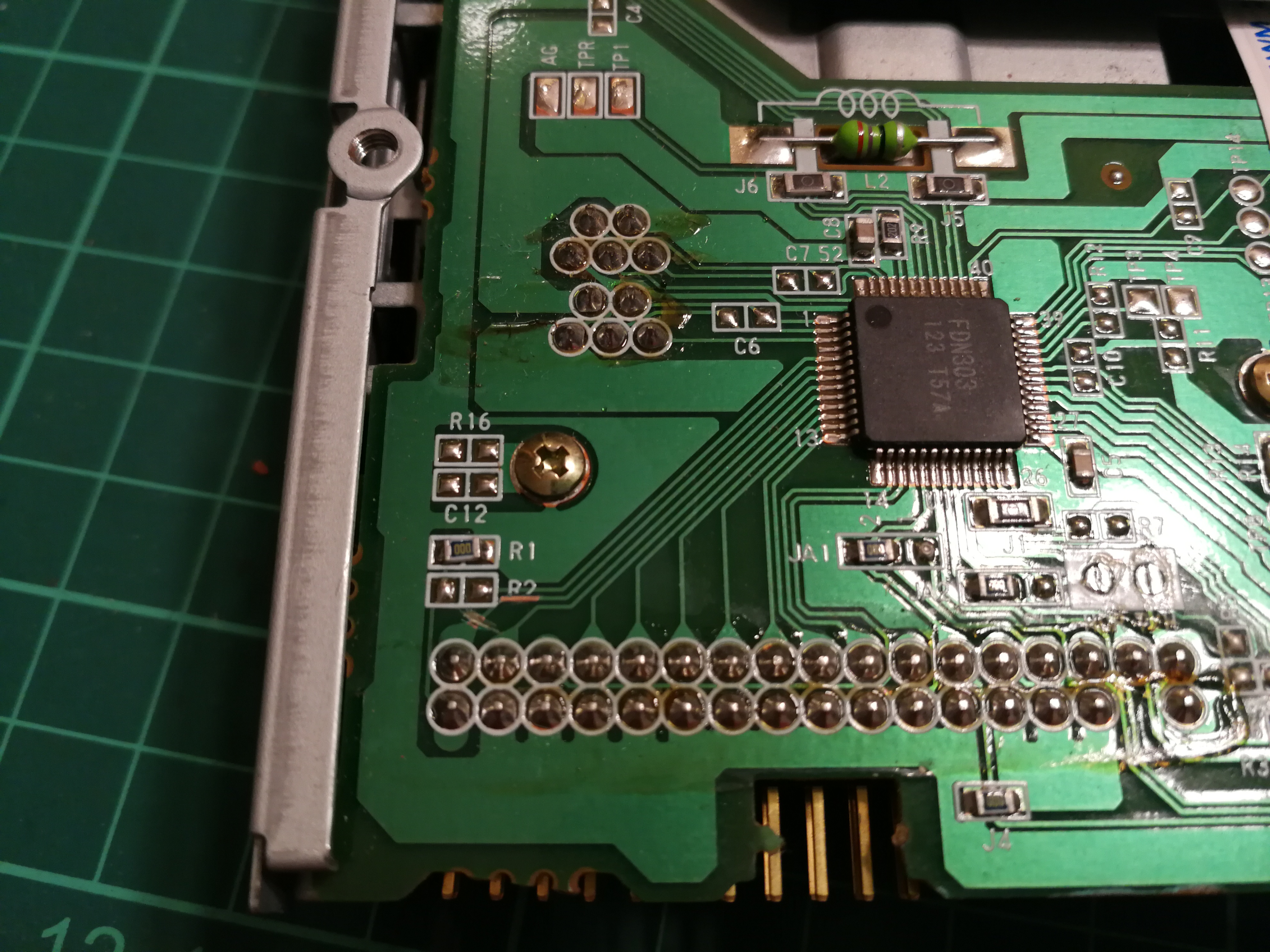

Cut trace coming from pin34 and scrape off paint to reveal copper to solder on.

FD1231H

Desolder jumper JA1/2 and solder it to JA1/1.

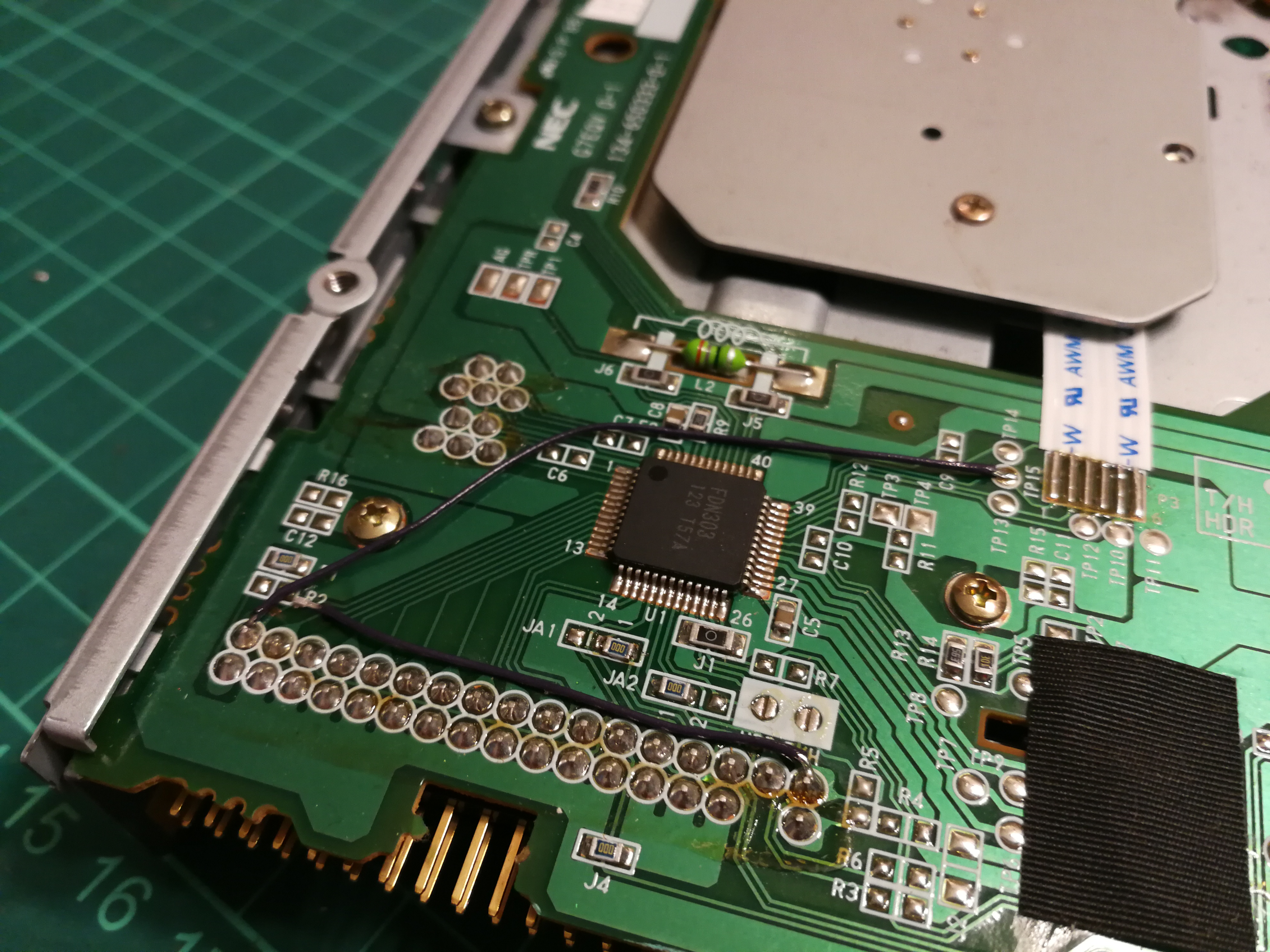

Solder jumper wire from pin34 to TP15 and from pin2 to revealed copper trace.

FD1231H
