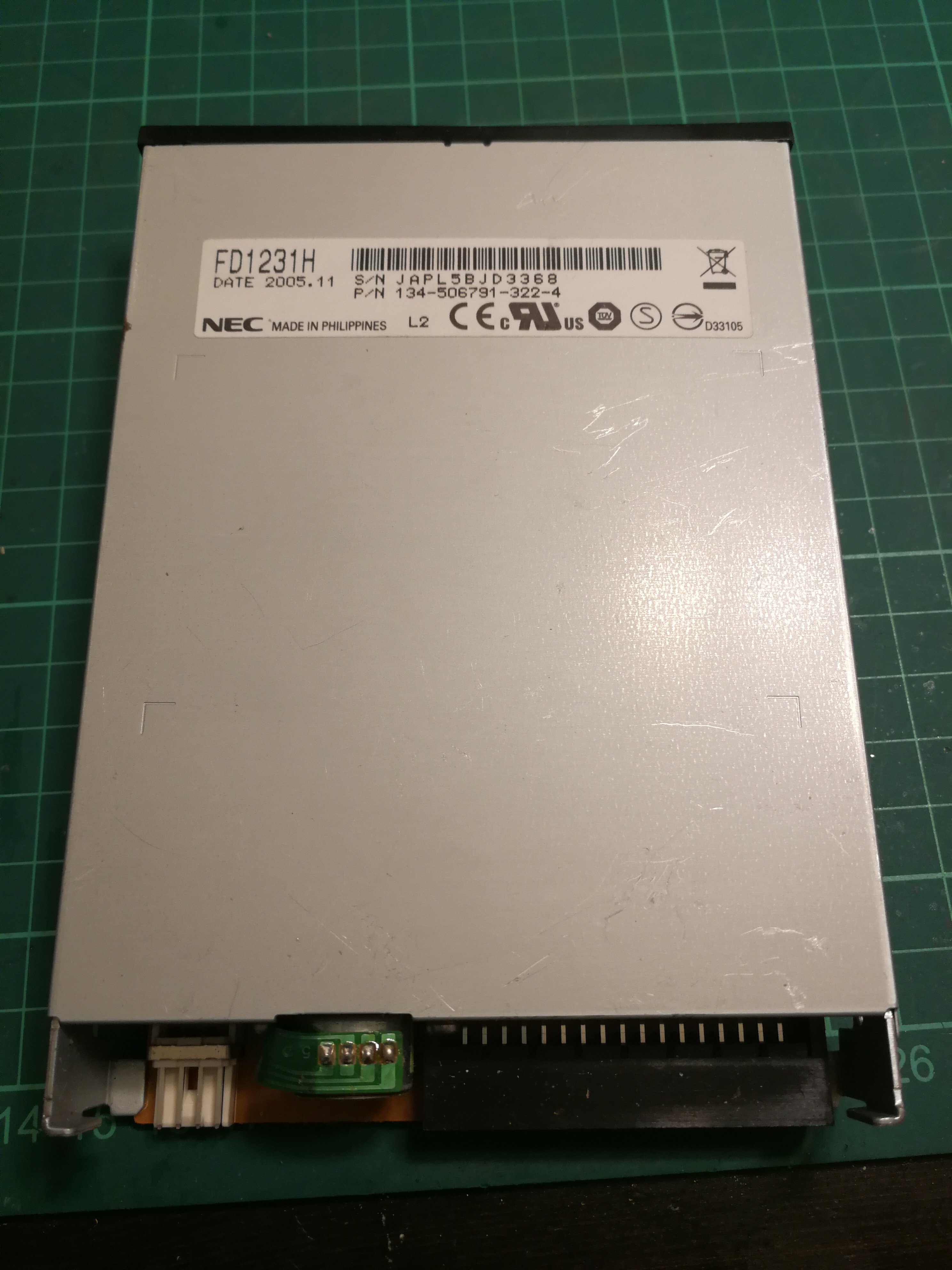

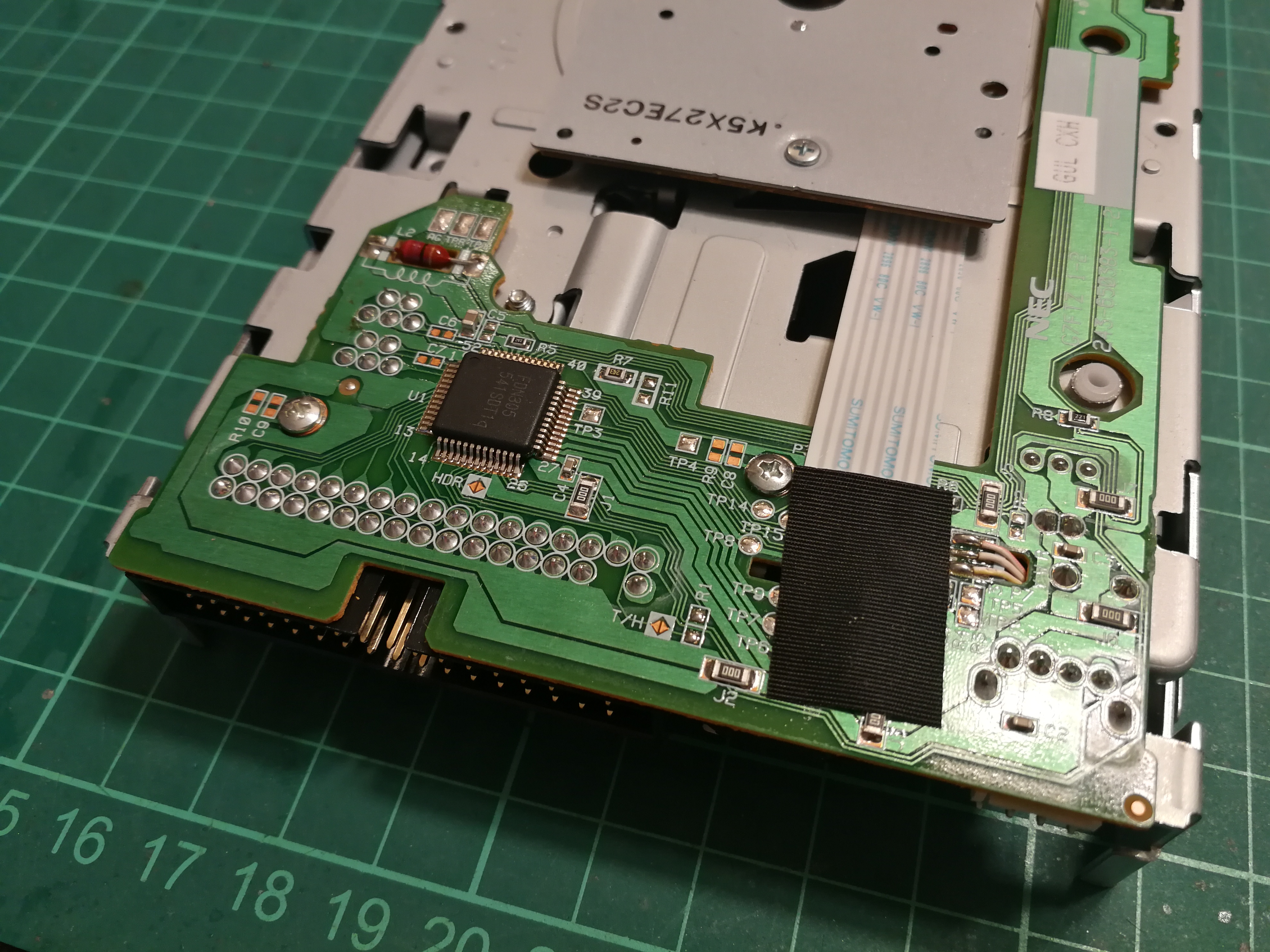

Converting NEC FD1231H to Amiga

FD1231H FD1231H

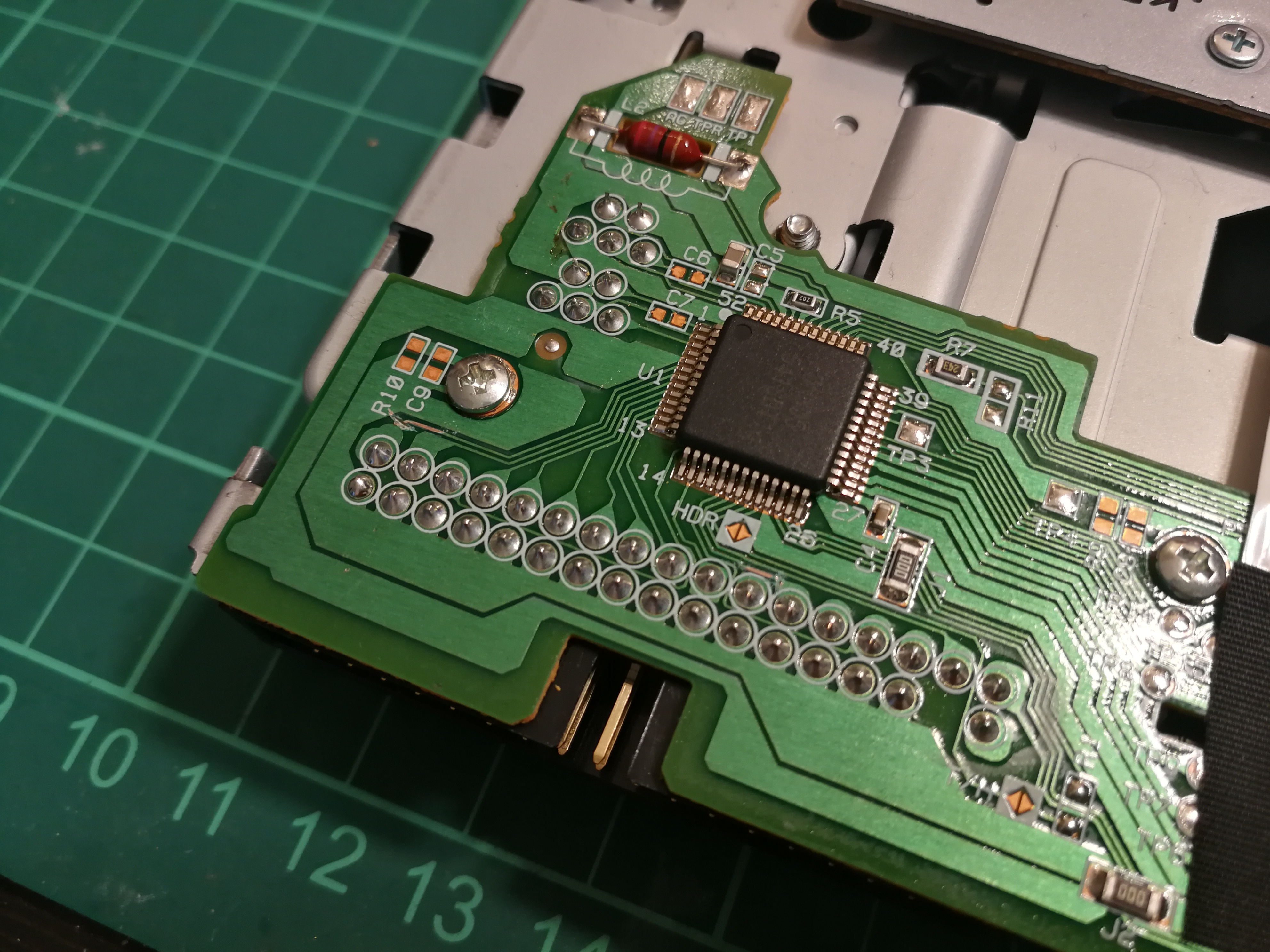

Cut trace coming from pin34 and scrape off paint to reveal copper to solder on.

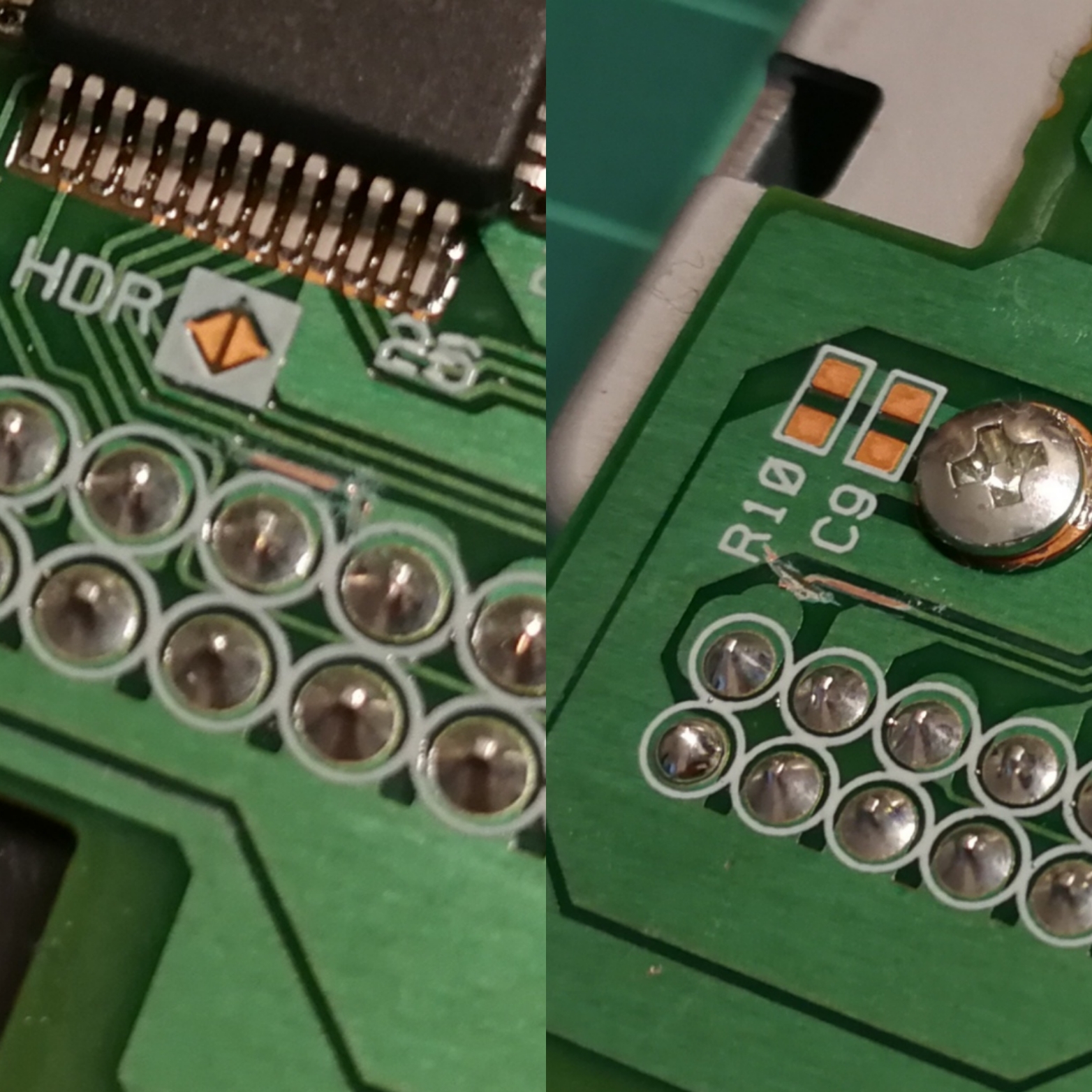

Cut trace coming from pin12 and scrape off paint to reveal copper to solder on.

FD1231H

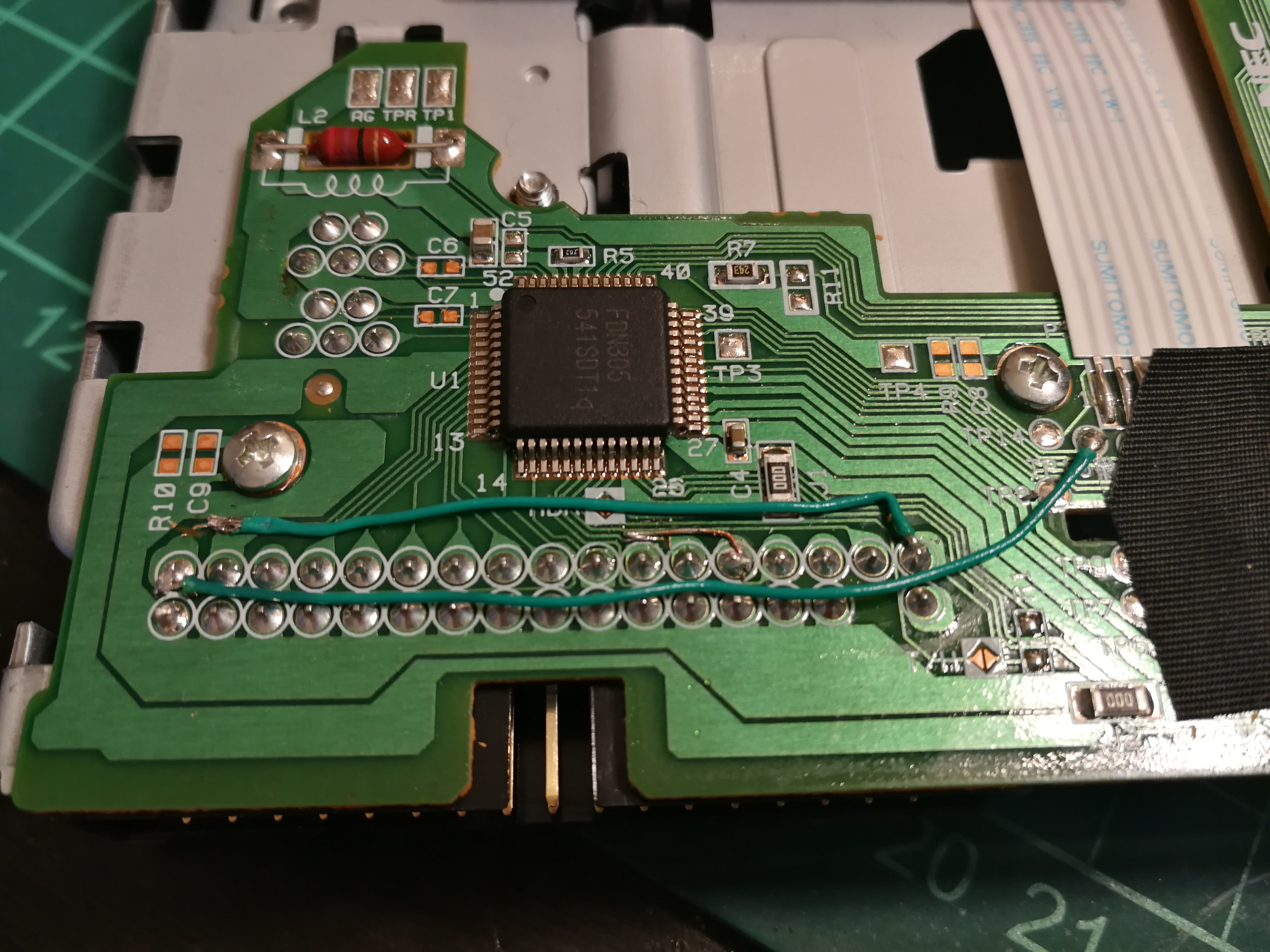

Solder jumper wire from pin10 to revealed copper trace that was connected to pin12.

Solder jumper wire from pin34 to TP15 and from pin2 to revealed copper trace that was connected to pin34.

FD1231H FD1231H
