Jumpers/Switches/Controls

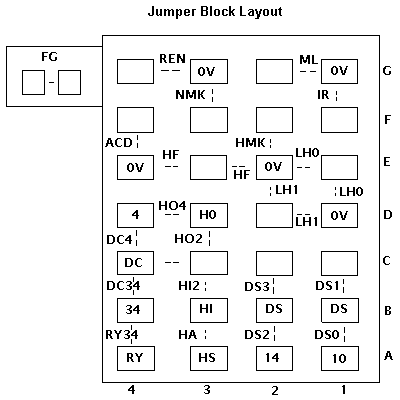

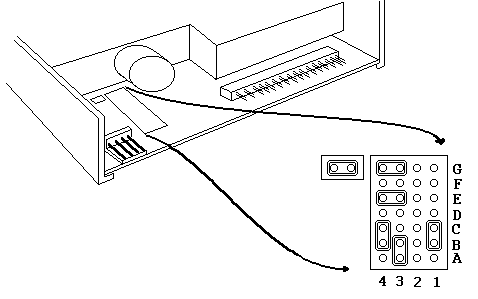

Jumper Settings

Jumper
Settings          Description



DSO to DS3        Drive select 0 to 3.*

FG ML             Connect electrical ground to chassis.

                  Activate motor on in 2 selections.

                  OFF = Motor-on signal.

                  ON  = Motor on + LED on (drive selected).

IR                LED on.

                  OFF = LED on when drive selected.

                  ON = LED on when drive selected and ready.

ACD               Inhibit the autochecking at disk installation.

                  OFF = Autochecking operation executed.

                  ON = Autochecking inhibited.

REN               Execute the autorecalibration at power on.

                  OFF = Autorecalibration inhibited.

                  ON = Autorecalibration executed at power on.

HMK,NMK           Jumpered to select an output condition of the index and RW data
                  pulses.

DC,RY             Select output signals for terminals 2, 4, and 34.



* Only 1 on at a time
720-KB Model


HA                1-MB mode fixed*



* HA must be jumpered for the 720-KB model.
1.44-MB and 720-KB Combination Density


HA, HI2, HO2, LH1, LH0 Select density mode by either pin 2 or sensor.
